2. Installation of beams
3. Installation of floor slabs
1. Installation of racks
Key Features:
• Modular Assembly:
Quick on-site installation without welding, using connecting nodes FixKIT.
• Thermal and Acoustic Insulation:
Profiles ThermoBEAM provide a continuous thermal insulation contour throughout the structure.
• Structural Flexibility:
Adaptable to various building typologies — from residential to commercial and modular projects.
• Precise Geometry:
Factory manufacturing of components ensures high tolerances and precise joints.
• Scalability:
Suitable for multi-storey buildings thanks to modular configuration and hidden connections VU-CONNECT.
The load-bearing modular frame with integrated ThermoBEAM
CoreFRAME — is a prefabricated load-bearing system designed for creating the main structural frame of buildings using KARKASYS. The design uses profiles ThermoBEAM as columns and beams, which allows for simultaneous provision of mechanical strength, geometric precision, and thermal insulation without cold bridges.

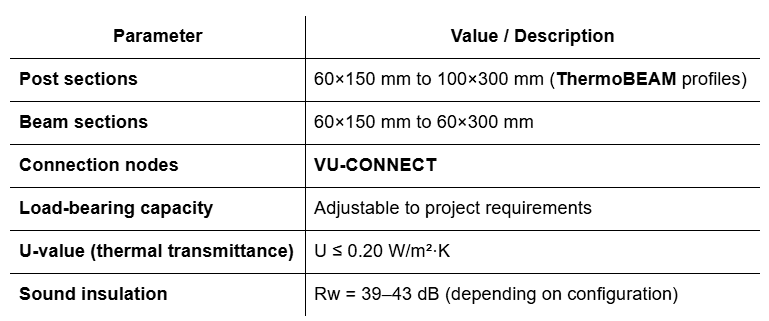

Technical specifications
Advantages CoreFRAME
• Lightweight yet bearing frame — high strength with low weight.
• Complete elimination of thermal bridges in the main structure.
• Minimization of labor costs and installation time on site.
• Full compatibility with other modules of the KARKASYS system:
PanelKIT, PanelCORE, ThermoFRAME, FloorKIT.
• Compatibility with any type of walls: brick and block walls,
• SIP panels and thin-walled steel constructions.
